Thông số kỹ thuật
| Mã đặt hàng: 80 05 |

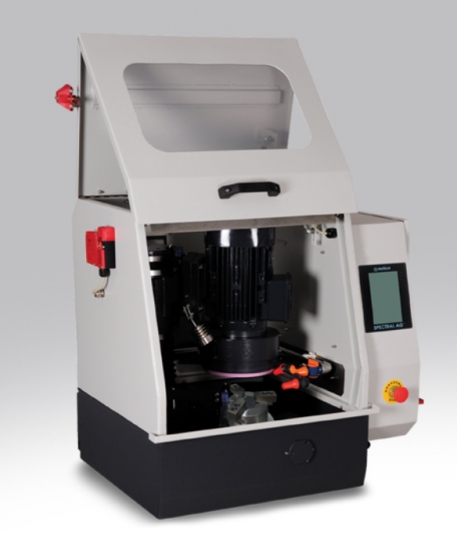

| Mã sản phẩm: SPECTRAL AG |
| Công suất động cơ mài, kW (S1): 2,2 |
| Công suất động cơ nghiền, kW (S3): 3 |
| Tốc độ bánh mài, (rpm), 2800 |
| Đường kính bánh xe cốc, (mm): Ø150 |
| Tốc độ tiến dao của bảng, (mm / s): 20-120 |
| Màn hình cảm ứng HMI, (inch): 7 " |
| Bộ nhớ chương trình: 99 |
| Độ chính xác độ sâu mài, (μ): 10 |
| Trục Y , (mm): 160 |
| Trục Z, (mm): 80 |
| Hoạt động: Tự động |
| Kích thước, WxDxH, (cm): 88 x 66 x 74 |
| Kích thước, WxDxH, (có tủ, cm): 88 x 66 x 155 |
| Trọng lượng, (kg): 185 |
Phụ kiện
| Accessories for SPECTRAL AG | |
| GR 1819 | Pneumatic Clamping Device with 3-Jaws |
| (To be ordered simultaneously together with the machine order) | |
| YM 7550-00 | Soft Jaws for Pneumatic Clamping Device (GR 1819) |
| GR 1829 | Mechanical 3-jaw chuck |
| GR 1820 | Electromagnetic clamping plate |
| (To be ordered simultaneously together with the machine order) | |
| GR 1828 | Automatic Sample Height Measurement System for full cyclic operation, |
| with automatic dressing of cup grinding stone. | |
| (To be ordered simultaneously together with the machine order) | |
| GR 1842 | Automation Software for full cyclic operation. |
| (To be ordered simultaneously together with GR 1828) | |
| GR 1816 | T-slotted table |
| GR 1394-00 | Recirculating coolant tank, stainless steel, 40 lt capacity, with pump, hoses etc. |
| GR 1802-01 | Floor Cabinet for FORCI Plan/DGP Plan/SPECTRAL MM/PG/AG |
| Spare Part Kit for SPECTRAL AG | |
| GR 1853 | Recommended Set of Spare Parts, SPC AG |
Vật tư tiêu hao
| Grinding Stones for SPECTRAL PG/AG (1 Pc) | ||
| GSW 60 | 80-150 | Al2O3 Grinding Stone, 60 grit, for medium hard steels, Dia. 150/32 mm |
| GSR 60 | 80-151 | Al2O3 Grinding Stone, 60 grit, for hard steels & cast iron, Dia. 150/32 mm |
| GSW 36 | 80-155 | Al2O3 Grinding Stone, 36 grit, for medium hard steels, Dia. 150/32 mm |
| GSR 36 | 80-156 | Al2O3 Grinding Stone, 36 grit, for hard steels & cast iron, Dia. 150/32 mm |
