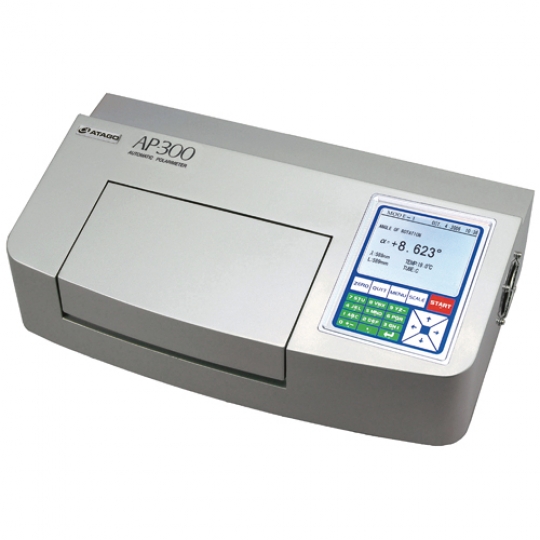

Automatic Polarimeter AP-300
The AP-300 fully automatic polarimeter measures a sample easily by setting the observation tube (filled with a liquid sample) in the sample chamber and pressing START.
Digitally displayed measurement values are large and easy to read. The AP-300 generally used in pharmaceutical, perfume, cosmetic, industrial, chemical, and food factories is the best for measuring the angle of rotation. In addition, the built in International Sugar Scale is used widely in sugar factories.
Mode: AP-300.
Sales: Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation).
Measurement readings: Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation), Specific Rotation, Concentration and Purity.
Measurement range: Angle of Rotation : -89.999 to +89.999°, International Sugar Scale : -130.000 to +130.000°Z.
Resolution: Angle of Rotation : 0.001°, International Sugar Scale : 0.001°Z.
Measurement accuracy: Angle of Rotation:
Displayed value : ±0.01° (-35.00 to +35.00°) .
Relative precision : ±0.2% (-35.01° to -89.99° , +35.01° to +89.99°) .
International Sugar Scale:
Displayed value : ±0.03°Z (-101.00 to +101.00°Z) .
Relative precision : ±0.2% (-130.00 to -101.01°Z , +101.01 to +130.00°Z) .
(Checked by reading a standard Quartz Plate.
Temperature indication: Resolution: ±0.1°, Accuracy:±0.5°.
Temperature correction range for international sugar scales: 18 to 30℃.
Display panel: Color LCD with backlight.
Light source: white LED.
Measurenment wavelength: 589nm (equivalent to the sodium-D line spectrum).
Output: Digital Printer DP-63 or DP-AD (Optional), RS-232C.
Manual calibration: Enables manual calibration by measuring a standard Quartz Plate.
Power supply: AC100 to 240V, 50/60Hz.
Included accessories: 100mm (5mL), 200mm (10mL), Observation tube (1each), Software, PolariSof.
Dimentions & Weight: 48.5×28.5×17.5cm, 14.4kg (Main Unit only).
Power consumption: 65VA.
Options: · Special Packages Type A Temperature Controlled : Cat.No.5296.
· Special Packages Type B Temperature Compensation : Cat.No.5297.
· Digital Printer DP-63 (Thermal printer) : Cat.No.3118.
· Digital printer DP-AD (Dot matrix printer) : Cat.No.3123.
· Observation tube 50mm long OT-50 (A) 2.5mL : RE-72056.
· Observation tube 100mm OT-100(A) (SUS) 5mL : RE-72054.
· Observation tube 200mm long OT-200 (A) 10mL : RE-72055.
· Jacketed flow tube 100mm : RE-72034.
· Jacketed flow tube 200mm : RE-72035.
· Jacketed flow tube 50mm : RE-72036.
· Jacketed flow tube with funnel 100mm : RE-72033.
· Jacketed flow tube with funnel 200mm : RE-72032.
· Quartz control plate 34°(100°Z) : RE-72045.
· Quartz control plate 17°(50°Z) : RE-72044.
· Quartz control plate 8°(25°Z) : RE-72043.
· Quartz Control Plate -34° (-100°Z) : RE-72050.
· Quartz Control Plate -17° (-50°Z) : RE-72049.
· Quartz Control Plate -8° (-25°Z) : RE-72048.
· Unjacketed Flow Tube (Glass) 50mm/4.5mL : RE-72051.
· Unjacketed Flow Tube (Glass) 100mm/9mL : RE-72052.
* Calibration Certificate : Contact an ATAGO representative for details.
Parts: Deck glass : RE-6712.
· Rubber packing for observation tube : RE-6713.
· Ring nut for observation tube : RE-6714.
· Light source unit : RE-74806.
· Printer paper (regular) for Thermal printer : RE-8412.
· Printer paper (long-term storage) for Thermal printer : RE-8414.
· Printer paper for Dot matrix printer : RE-89403.
· Ribbon cassette : RE-89402.
